Disposal of Cake of Jatropha Seed is one of the major problems being faced by BioDiesel Producers across the world. Seed cake is not a problem but it is a big asset. There are two ways of processing these to produce Organic Fertilizer.
Bio Gas Plant : Here the Biomass is digested in a simple plant and Bio Gas produced is stored and used. The area required for plant is very small.
Composting : Here the Biomass is digested underground but Bio Gas produced is wasted. Needs large area of land.
A 1 ton per day biodiesel plant, produces 2.5 to 3 tons of seed cake. If we carefully analyze this waste, we will realize that majority of it is biodegradable. Oil seed cake is a by-product obtained from the oil extraction process and can be converted to valuable organic fertilizer. Generally a slurry of 8 to 10% solids is used in Bio Gas plant, and one can get 350 Kilo Calories per Kg of cake.
When compared with other organic sources, (manures, seed and oil cakes), oil seed cake from Jatropha provides essential nutrients at comparable levels. The seed cake is not good as feed for livestock due to its toxicity. This biodegradable waste, if handled properly would maintain the natural balance of essential elements and thereby promote more harvests from nature.
Disposal of Seed Cake of Jatropha, can be achieved by several other means like incineration, landfills, dumping in the sea or other water bodies etc. These methods have their own hazards. Incineration can lead to respiratory illnesses. Moreover, it may lead to disruption of biogeochemical cycles of several elements and will have long term effects on biosphere. Landfill and dumping can pollute water bodies.
Bio Gas Plant would serve many purposes such as:
Environment friendly disposal of waste, which is need of hour considering mass pollution everywhere.
Generation of fairly good amount of fuel gas, which will definitely support the dwindling energy resources.
Generation of high quality manure, which is an excellent soil conditioner. This is very important for replenishing fast decreasing resources of productive soils. It must be noted that need for replenishing the soil with high quality organic manure has been identified in plan documents.
Biogas is a colour less, odour less and inflammable gas. The gas generated in this plant can also be used as a source of natural gas. The production of biogas, is about 0.25 to 0.35 cubic meters per kg of cake fermented, with following composition of biogas
In Pune, at Kirloskar Oil Engine Campus at Khadki, company has set up the demonstration plant, producing 250 m3 of non dung based biogas unit, running on Castor / Karanj / Sal cakes (with residual Oil / Deoiled). They have developed scrubbers, based on PSA - Molecular Sieve Technology, that produces about 95% pure methane. They have established the CNG filling Mother Station where they fill this purified methane in the cylinder cascades, at 200 bar. They also run Suzuki / Maruti - Zen, which is fitted with CNG kit. Also, they are producing power, and are running 7.5 kVA biogas based generator (H2S scrubbed gas), and 35 kVA CNG generator. Also, the biogas or purified gas could be used as cooking fuel.
All these applications are in working condition, and endurance testing is under way. Further research is in progress, where they propose to develop the 'Energy Solution' that should be bankable, i.e. with Return On Investment in less than 3 years. Also, Kirloskars are testing their gensets on Straight Vegetable oil and 100% Biodiesel.
Swadhin-Urja has developed simple to use, maintenance free biogas plant for your home cooking fuel need. You can generate cooking gas at your home making use of 'Swadhin Gas Packet'. Just put content from this gas packet along with the kitchen waste into the Biogas Plant and within few hours sufficient gas will be available for you to cook food. http://www.swadhin-urja.webs.com
Amount of Bio Material required for production of 1 cubic meter of BioGas (equivalent to 400 gms of LPG, fuel for 3 to 4 people).
Production Plant of Bio-Gas
Stale, left over food: 5 kgs
Animal Dung: 25 kgs
Chicken dung 2 kgs + animal dung 10 kgs
Spoiled flour of wheat / corn: 1.5 kgs
According to the United Nations' Food and Agricultural Organization (FAO), there are about 1.3 billion cattle worldwide (one for every five people), slightly more than 1 billion sheep, around 1 billion pigs, 800 million goats and 17 billion chickens. Between them, they produce a lot of fecal matter, around 13 billion tons of it a year, according to various estimates.Operation
That matter contains 55% to 65% of methane, which when released into the atmosphere is bad news for us (it traps heat at 23 times the rate that carbon dioxide does) but when burned is another matter entirely. It gives us energy.
62.5 liters of bio gas can be produced from one kilogram (one cubic foot of bio gas can be produced from one pound) of cow manure (heated at around 28oC, or 82.4oF). That is enough to cook one day's worth of meals for four to six people in India. One cow in one year can produce enough manure, which when converted into methane can match the fuel provided by 200+ liters (about 53 U.S. gallons) of gasoline. Around 7,500 cattle can produce 1 megawatt (MW) of electricity. Jatropha cake can very well substitute cow dung, once bio gas plant is stabilized based on cow dung.
Bio Gas Plant : In this case the Biomass is digested in a simple plant and Bio Gas produced is stored and used. The area required for plant is very small. A 1 ton per day biodiesel plant, produces 2.5 to 3 tons of seed cake. If we carefully analyze this waste, we will realize, that majority of it is biodegradable. Oil seed cake is a by-product obtained from the oil extraction process and can be converted to valuable organic fertilizer. The cake has the following properties and nutrients:
Moisture : 4.58 %
Nitrogen : 3.2 - 6.0 % (N2)
Phosphorus : 1.4 - 2.75 % (P2O5)
Potassium : 0.94 - 1.68 % (K2O)
Crude Protein : 58 %
A paste of cake in water, is generally fed to digester. Solids concentration should be around 8 to 10%. Bio Gas is formed within 1 to 5 days. 1 kg of cake can produce gas which can have a heat value of 350 Kilo Calories.
The material to be processed is brought to the plant site every day. Two workers are needed for the operation of the plant. The important tasks to be done are:
Transport of waste materials
Processing the waste in mixer
Routine operations for pre-digester and digester tanks
Infrastructure required to set up a Bio gas plant of a capacity of 1 ton /day of Oil Cake is as follows:Construction of a Bio-gas Plant
Area of Plot: 300 m2
Manpower: Two unskilled persons
Power supply: 1 KW
Water Supply: 1,200 liters
Cost: Indian Rupees 5,00,000
Criteria for Bio-gas Plant
Design of Bio-gas Plant
BioDiesel plant owner who wants to build a bio-gas plant must have oil seed cake to sustain the operation of the plant. The minimum amount of cake should be 3 to 4 tons per day.
Cake storage enclosure which is not more than 20 meters from the bio-gas construction area.
There must be drainage alley from cake storage area, connected directly to the bio-gas plant.
Access to ground water all year round and the water source should not be farther than 20 meters from the bio-gas plant.
Bio gas usage should not be placed further than 100 meters form the plant.
The owner must have interests in using gas, fermented manure and want to build a bio-gas plant to reduce the pollution in environment.
Required budget, materials and labour to build bio-gas plant.
Time and labour in maintenance of bio-gas plant.

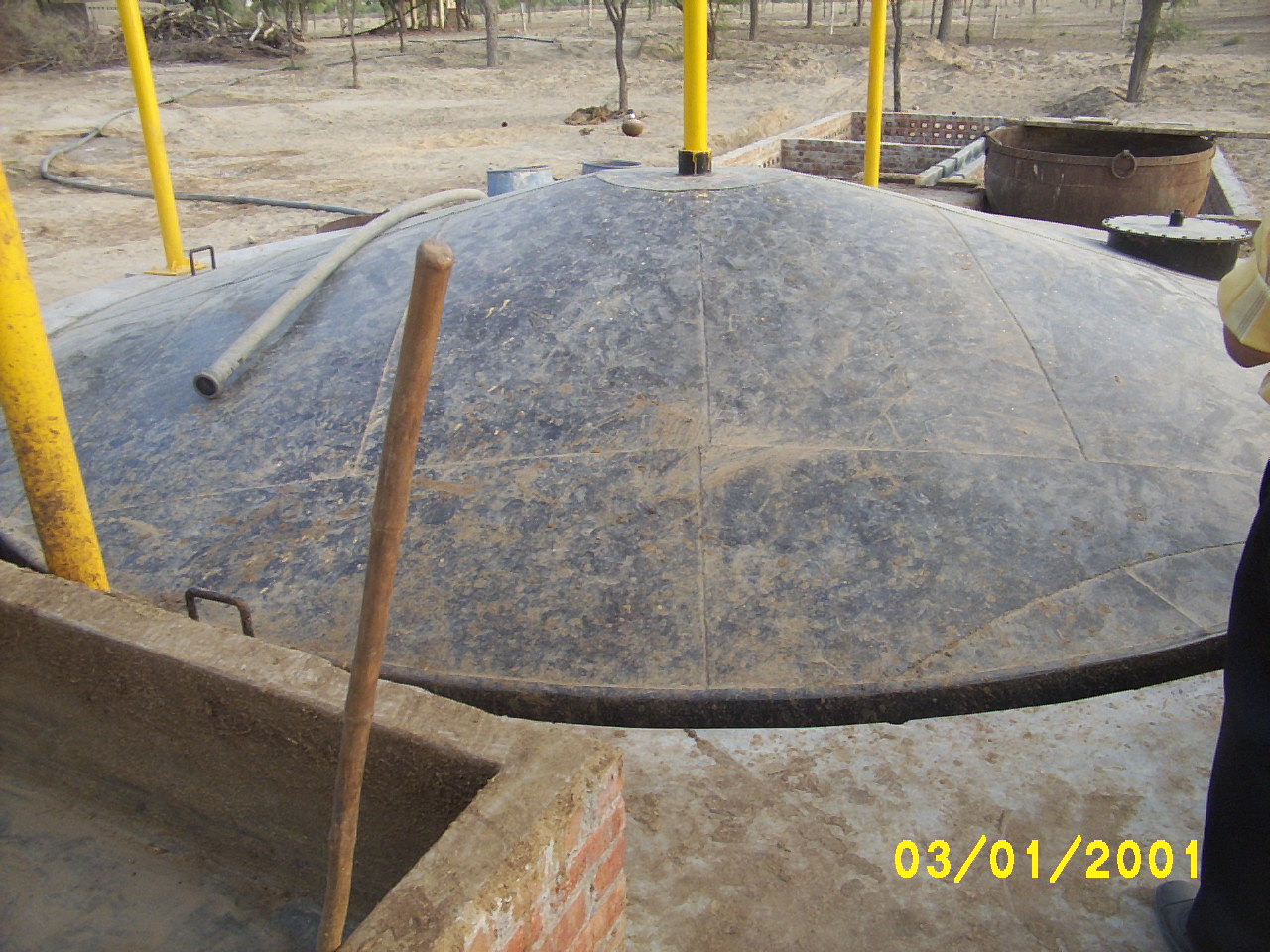

The fixed dome of bio-gas plant is buried underground. There are 3 main connecting parts:

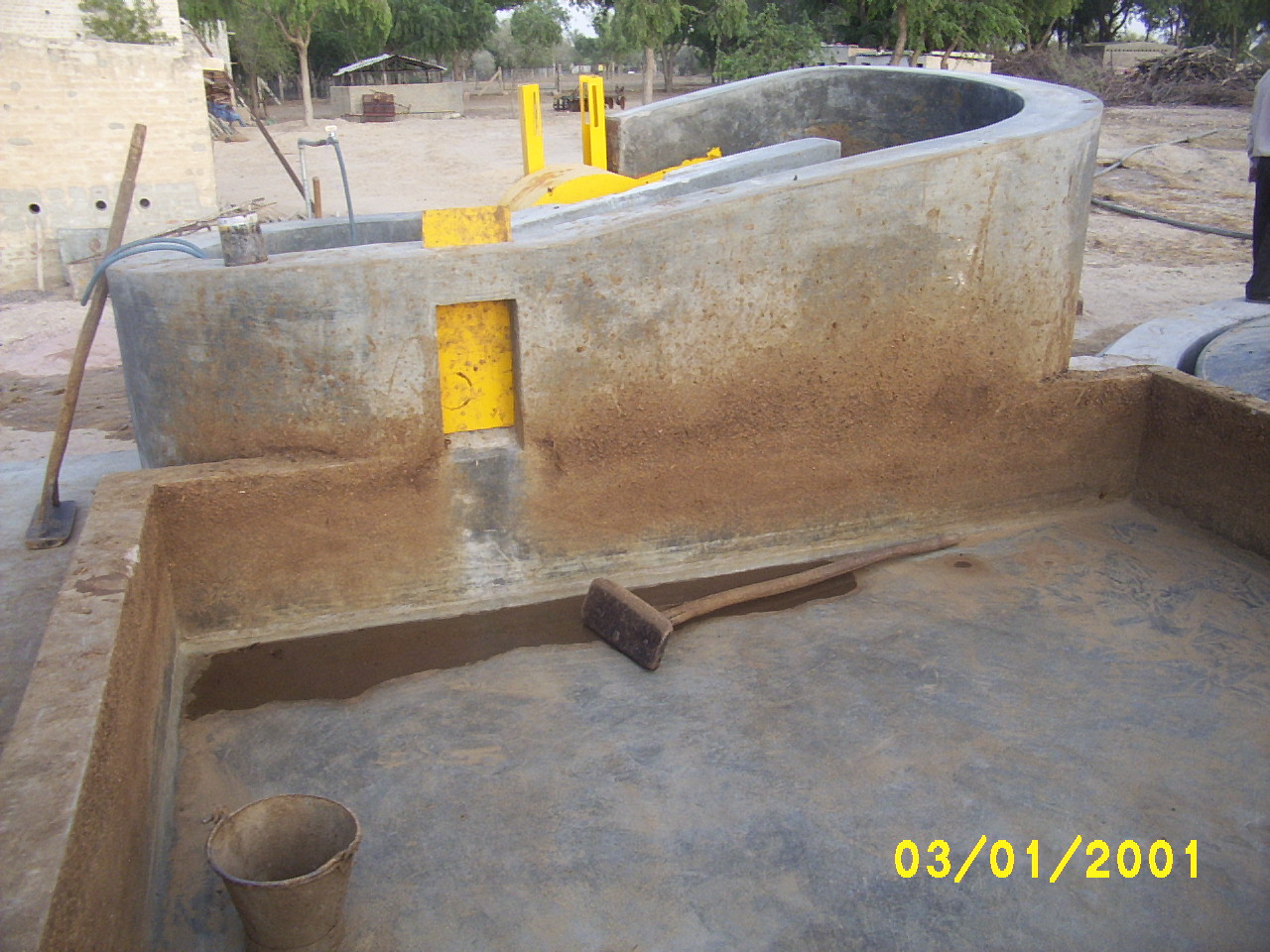

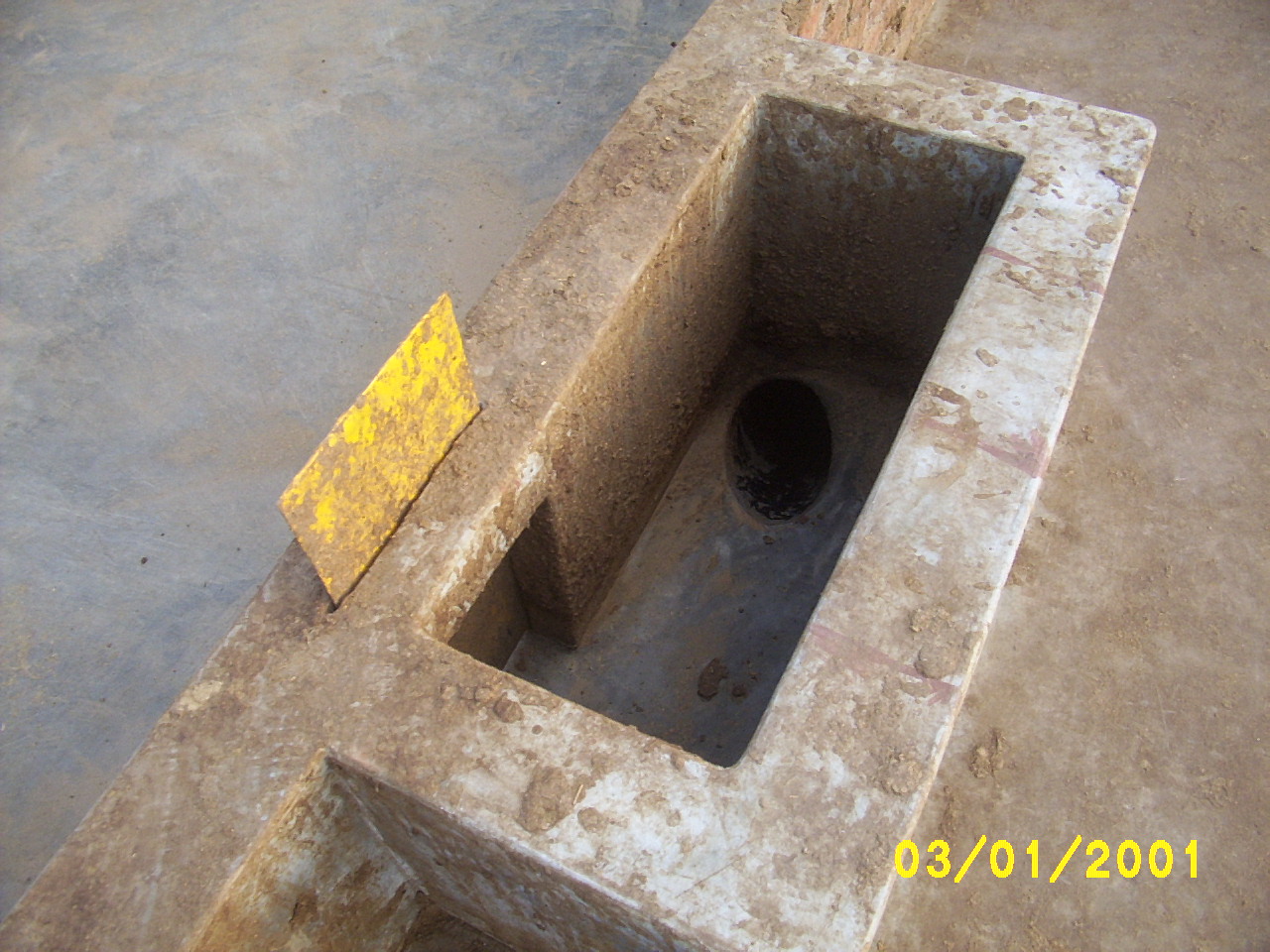

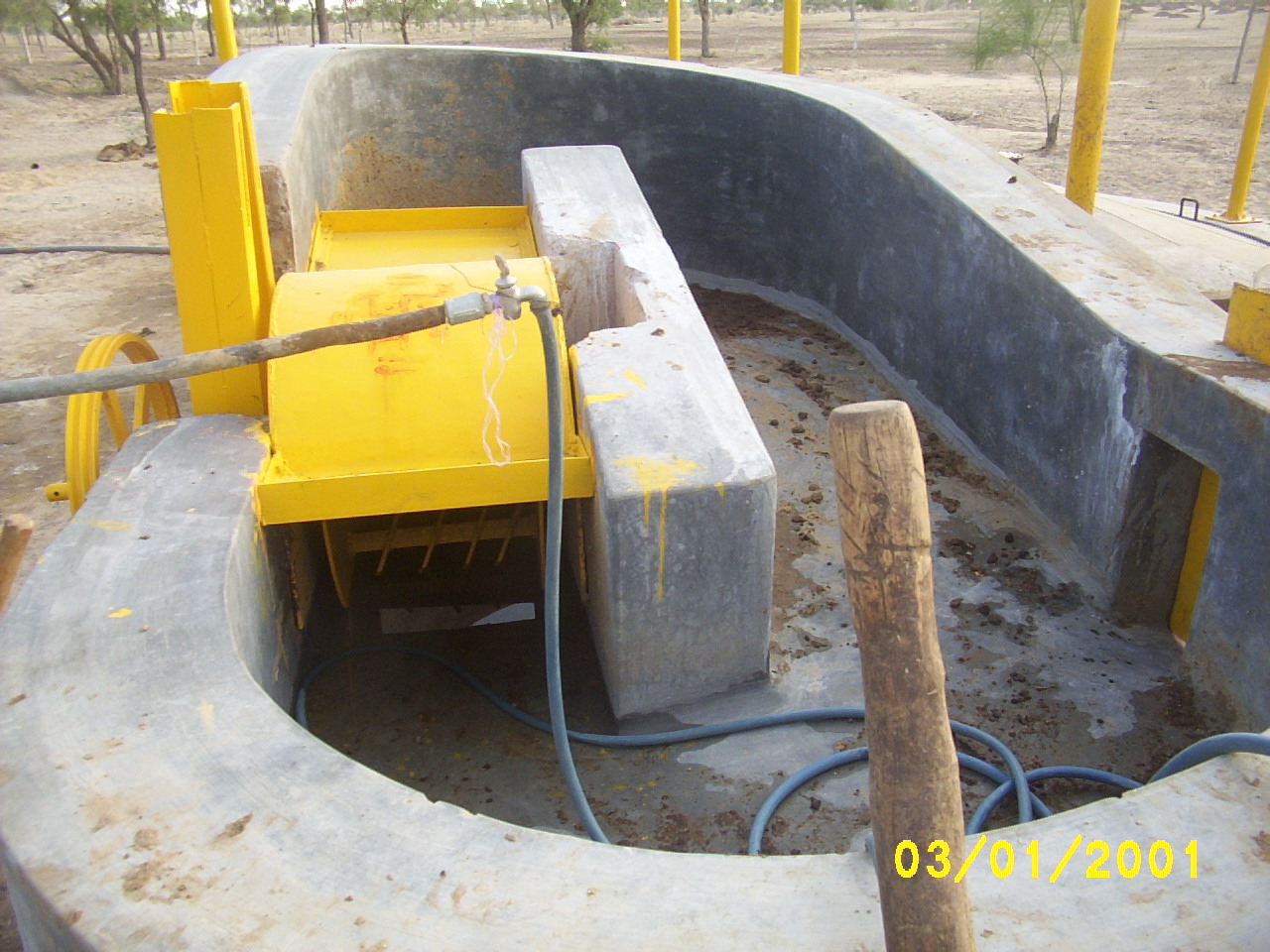

Mixing chamber: where oil seed cake is mixed with water before it is poured into digester chamber.
Digester chamber: where oil seed cake is fermented. Methane and other gases will be produced in the chamber and these gases will push manure and slurry at bottom of the floor into expansion chamber.

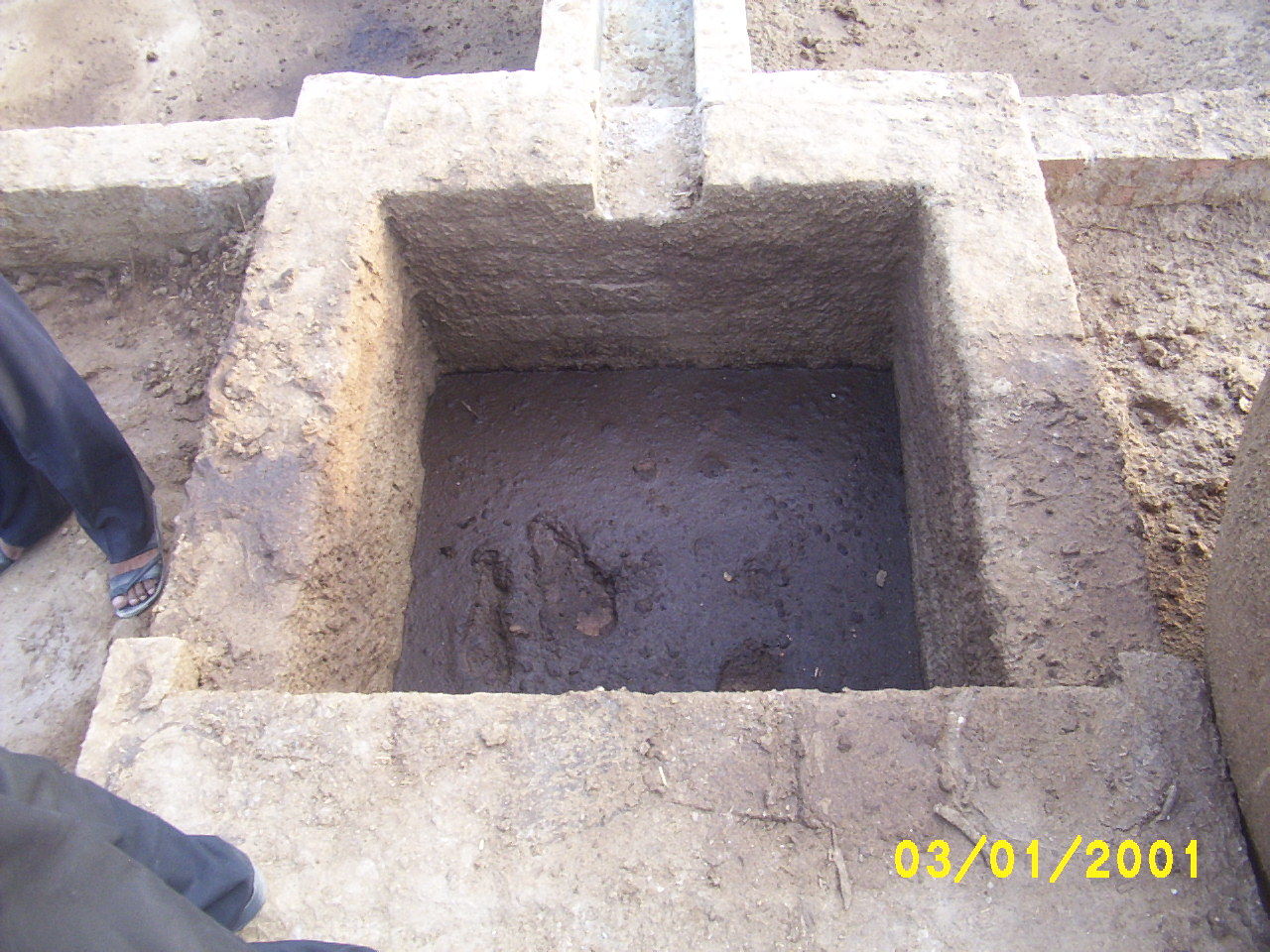

Expansion chamber: which collects excess manure and slurry. When gas is being used, manure and slurry will flow back into digester chamber to push gas up for usage. When the excess manure exceeds the volume of the chamber, the manure will be drained out.
This system is called dynamic system, when gas is produced inside the pit, the gas pressure will push manure and slurry at the bottom of the pit to flow up into expansion chamber. When this gas is used, the slurry in the expansion chamber will flow back into the digester chamber to push the gas up for usage. This happens consistently. The plant will be operated efficiently for a long period of time if the gas pit does not get cracked and the system runs regularly. In each case the strength of the plant depends on fine construction, specification of materials, and strict adherence to the maintenance of the bio-gas plant.Location of the Bio-gas Plant
The plant should not be located farther than 5 meters from the oil seed cake enclosure. The digester chamber must be in an open area and should not be near any water source or natural water, as water coming out from Bio Gas plant may seep into underground water. The plant should also be situated on a slope and not on the low land to avoid the danger of floods. The excess manure from expansion chamber should flow into the open pit or the storage tank and not into natural water bodies such as rivers to avoid the risk of pollution. The bio gas plant must have a concrete slab floor enclosure with a drainage alley, with 1% gradient. If the floor is not on slope, it must be elevated. For larger plants, a continuous rotary vacuum filter can be installed to filter out water from cake, for reuse.Construction of Bio Gas Plant
Locate the lowest point of drainage alley and mark 30 cm above this point. Mark a peg on the opposite side and balance the level between the peg and the mark over the alley with level adjusting hose. From the mark on the level line, set the center of digester chamber on the ground surface by using plumb. Draw the line to mark the size of digester chamber.

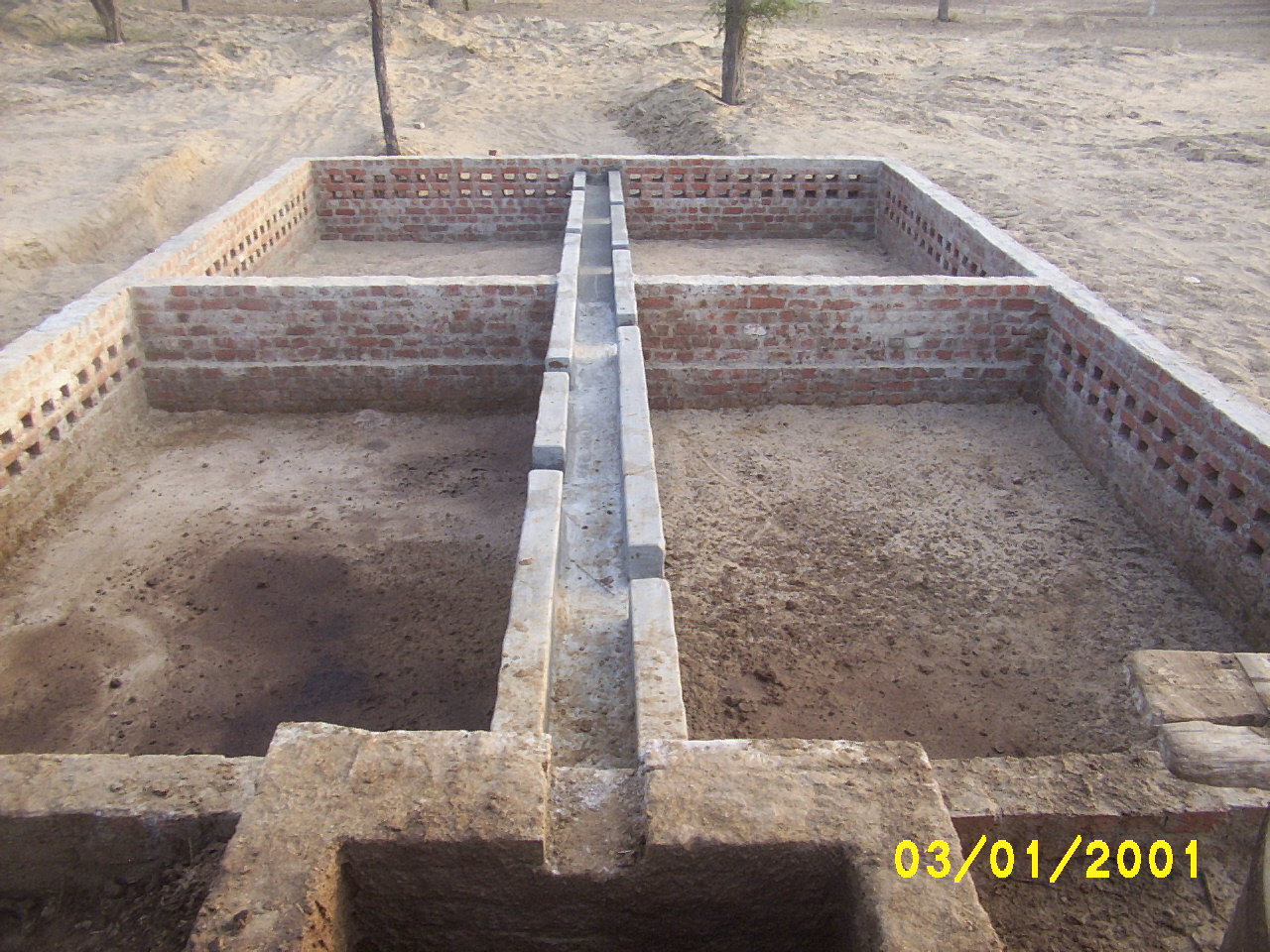

To locate the storage tank, measure from the center of digester chamber. Find the lowest point to set the outlet point which is 60 cm lower than the level line and at least 15 cm over the ground to prevent the outside water to flow into the chamber. If the lowest point can not be located, check the drainage alley for the possibility of being elevated or excavated. When the outlet point is found, the temporary level line becomes level line. Cross another permanent level line to the first line at the center of the digester chamber to locate the center of digester chamber. The location of expansion chamber should be on the opposite side of the mixing chamber or not over 45o.
Think before excavating: Ensure that the diameter of the pit excavated, is consistent with diameters at the top and the base, and at depth below level line. Place excavated soil 50 cm away from the edge of the pit and do not put it on the ground where the expansion chamber, mixing chamber or outlet pipe will be constructed. It is a waste of time, to remove this pile of soil later. Do not excavate deeper as the base of the chamber may not be strong enough. If there is any seepage, a small trap pit must be dug next to the outer edge of digester chamber base. The floor of the trap pit should be lower than the digester chamber so that ground water can flow into the trap pit. When the required final depth is obtained, set the center at the base of digester chamber by crossing the level line and use a plumb to locate the center of the digester chamber. Excavate soil in the outer circle to a depth of 25 cm and draw another circle. Excavate soil in the inner circle to a depth of 5 cm.
